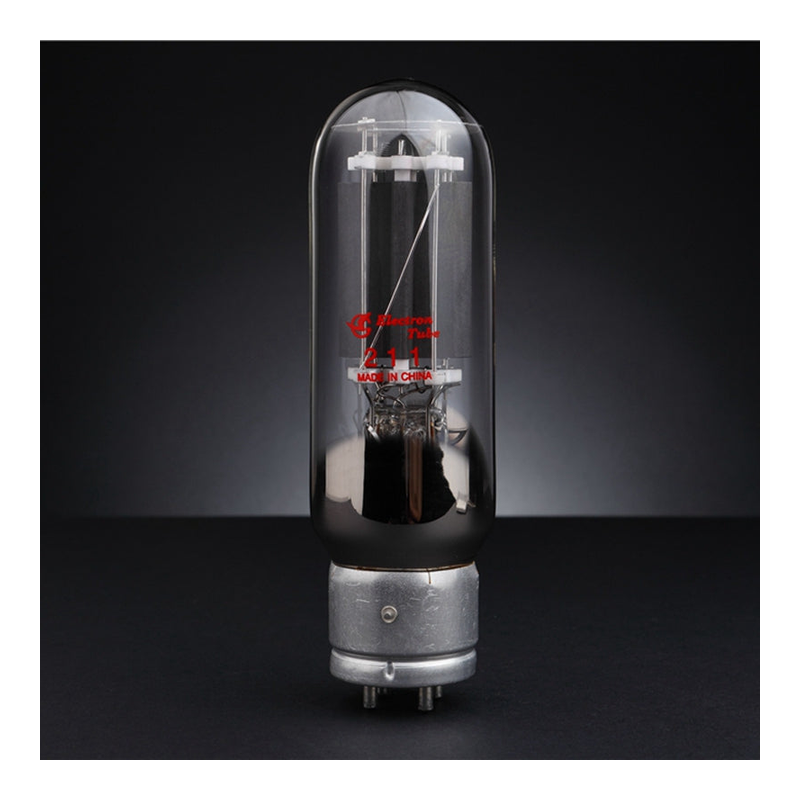

211
Triode · DHT · UX-4 · 1938
“Transmitting triode. Mighty bass.”
Power triode delivering 75W for push-pull and SET designs
Datasheet ↗SPICE
GAIN FACTOR0
PLATE IMPEDANCE0kΩ
TRANSCONDUCTANCE0mA/V
GAIN12%
POWER100%
DRIVE96%
LINEARITY94%
TYPICAL OPERATING POINT
EXECUTIVE SUMMARY
The 211 (VT-4C) is a directly-heated thoriated-tungsten power triode originally developed for military radio transmitter service. Running at plate voltages of 800-1250V, it can deliver 15-25W in single-ended Class A with a fast, dynamic, and slightly forward presentation compared to the warmer 300B. The thoriated-tungsten filament runs at bright incandescence and gives the tube exceptional transient speed and high-frequency extension. GE and RCA NOS examples are the standard, with current production from Shuguang and Psvane offering more affordable alternatives.
APPLICATIONS
SET outputPush-pull output
Audio Note OngakuCary CAD-805
• PA/public address
VS VT-4C
HISTORY
Introduced1938ManufacturerGE·RCAEquivalentsVT-4C, 242C
Pre-WarSPECIFICATIONS
Heater Voltage10V
Heater Current3.25A
Max Plate Voltage1250V
Max Power75W
Sensitivity3.1 mA/V
Gain Factor12
Internal Impedance4.2kΩ
PinoutUX-4
Era1938
RarityModerate
CLASSIC CIRCUITS
211 SE Classic750V · SE
