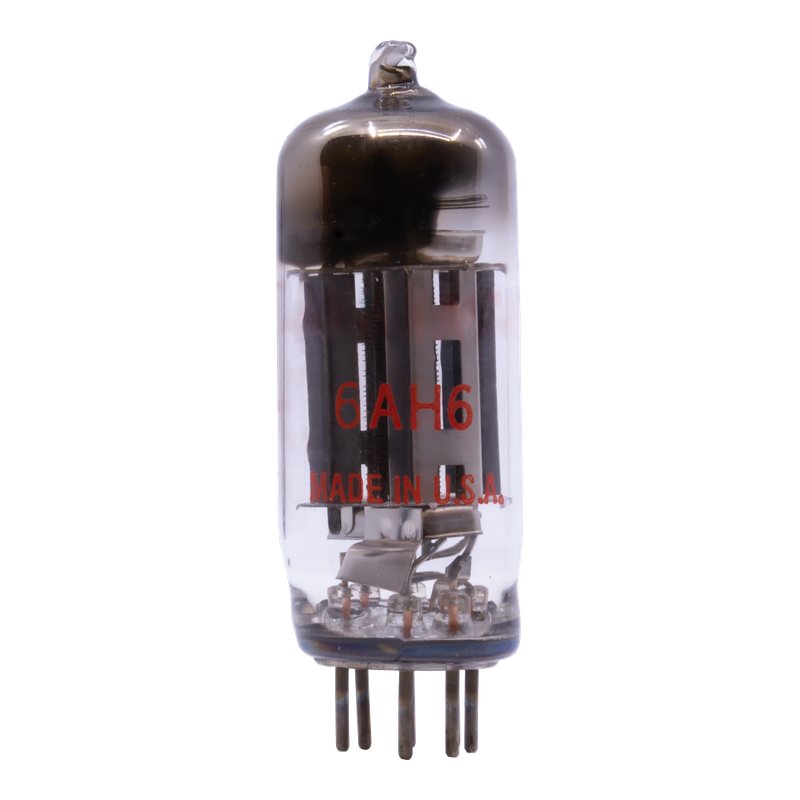

6AH6
Pentode · IHT · 7-pin Miniature · 1952
“High-Gm sharp pentode.”
Small-signal pentode for low-noise voltage amplification
Datasheet ↗SPICE
TRANSCONDUCTANCE0mA/V
GAIN0%
POWER8%
DRIVE50%
LINEARITY75%
EXECUTIVE SUMMARY
The 6AH6 is a indirectly-heated pentode from RCA, introduced around 1952. Commonly used in rf / preamp applications. High-Gm sharp pentode.
APPLICATIONS
Voltage amplifier
Generic pentode rf / preamp stage
HISTORY
Introduced1952ManufacturerRCAEquivalentsNone
Golden AgeSPECIFICATIONS
Heater Voltage6.3V
Heater Current0.45A
Max Plate Voltage330V
Max Power3.2W
Sensitivity9 mA/V
Gain Factor—
Internal Impedance—
Pinout7-pin Miniature
Era1952
RarityCommon
