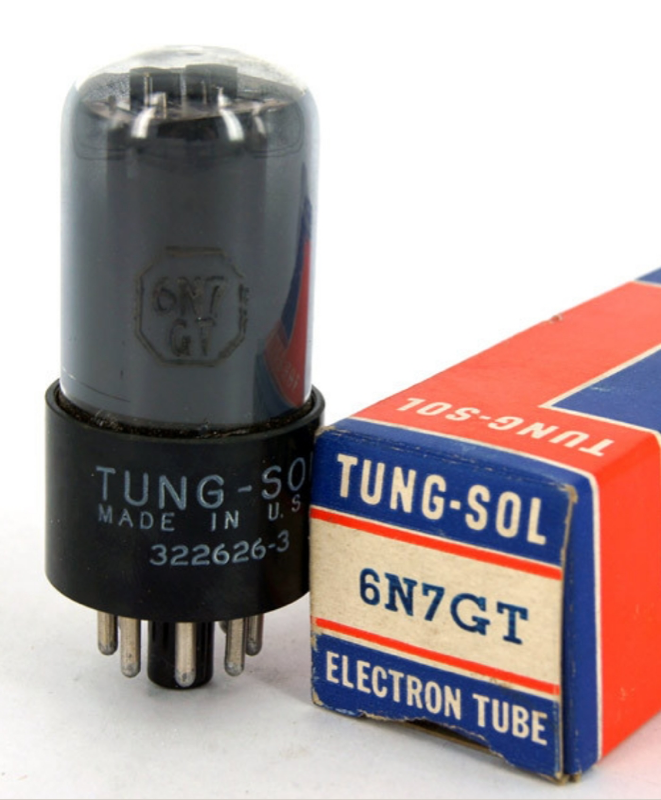

6N7GT
Triode · IHT · Octal · 1940
“GT envelope.”
Medium-gain triode for driver and line stage applications
Datasheet ↗SPICE
GAIN FACTOR0
PLATE IMPEDANCE0kΩ
TRANSCONDUCTANCE0mA/V
Cgk0pF
Cgp0pF
Cpk0pF
GAIN20%
POWER14%
DRIVE92%
LINEARITY90%
TYPICAL OPERATING POINT
EXECUTIVE SUMMARY
The 6N7GT is a indirectly-heated triode from RCA·Sylvania, introduced around 1940. It provides a gain factor (μ) of 20 with 7700Ω plate resistance. Commonly used in driver applications. GT envelope.
APPLICATIONS
Push-pull output
Generic triode driver stage
VS 6N7
HISTORY
Introduced1940ManufacturerRCA·SylvaniaEquivalents6N7
Pre-WarSPECIFICATIONS
Heater Voltage6.3V
Heater Current0.8A
Max Plate Voltage300V
Max Power5.5W
Sensitivity2.6 mA/V
Gain Factor20
Internal Impedance7.7kΩ
PinoutOctal
Era1940
RarityCommon
Input Capacitance3.4pF
Miller Capacitance3.4pF
Output Capacitance3.8pF
