AZ1

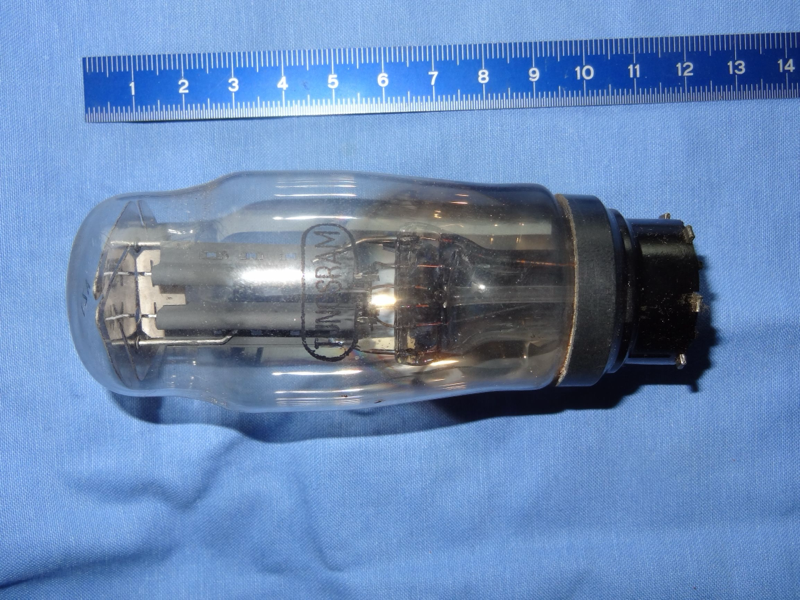

Rectifier · DHT · Side Contact P8A · 1935
“Classic European rectifier. Gentle delivery.”
Full-wave rectifier for vacuum tube power supply designs
GAIN0%
POWER0%
DRIVE50%
LINEARITY75%
EXECUTIVE SUMMARY
The AZ1 is a directly-heated rectifier from Philips·Telefunken, introduced around 1935. Commonly used in rectifier applications. Classic European rectifier. Gentle delivery.
APPLICATIONS
Power supply rectification
Generic rectifier rectifier stage
HISTORY
Introduced1935ManufacturerPhilips·TelefunkenEquivalentsRGN1064
Pre-WarSPECIFICATIONS
Heater Voltage4V
Heater Current1.1A
Max Plate Voltage500V
Max Power—
Sensitivity—
Gain Factor—
Internal Impedance—
PinoutSide Contact P8A
Era1935
RarityModerate
SPICE model not yet available. Loadline calculator requires calibrated Koren parameters.
