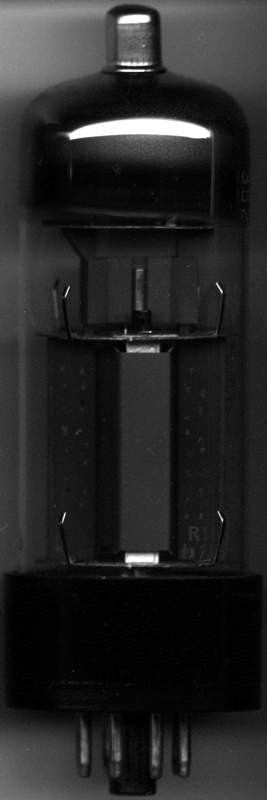

Ampera
E130L
Pentode · IHT · 9-pin Noval + Top Cap · 1960
“Extraordinary wideband pentode. Massive gm.”
Power pentode delivering up to 13W in pentode, UL, or triode mode
PLATE IMPEDANCE0kΩ
TRANSCONDUCTANCE0mA/V
GAIN0%
POWER33%
DRIVE90%
LINEARITY75%
EXECUTIVE SUMMARY
The E130L is a indirectly-heated pentode from Telefunken·Philips, introduced around 1960. Commonly used in power (se/pp) applications. Extraordinary wideband pentode. Massive gm.
APPLICATIONS
Power output
Generic pentode power (se/pp) stage
HISTORY
Introduced1960ManufacturerTelefunken·PhilipsEquivalents7534
Late ProductionSPECIFICATIONS
Heater Voltage6.3V
Heater Current0.9A
Max Plate Voltage350V
Max Power13W
Sensitivity27.5 mA/V
Gain Factor—
Internal Impedance10.0kΩ
Pinout9-pin Noval + Top Cap
Era1960
RarityRare
SPICE model not yet available. Loadline calculator requires calibrated Koren parameters.
