Ampera

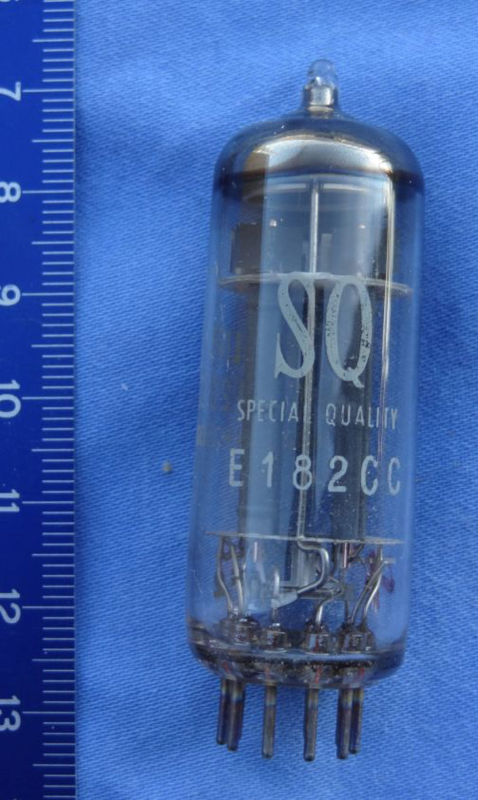

E182CC
Dual Triode · IHT · 9-pin Noval · 1960
“SQ dual triode. High perveance.”
Medium-gain triode for driver and line stage applications
GAIN FACTOR0
PLATE IMPEDANCE0kΩ
TRANSCONDUCTANCE0mA/V
Cgk0pF
Cgp0pF
Cpk0pF
GAIN24%
POWER10%
DRIVE97%
LINEARITY88%
EXECUTIVE SUMMARY
The E182CC is a dual indirectly-heated triode from Philips·Mullard, introduced around 1960. It provides a gain factor (μ) of 24 with 2800Ω plate resistance. Commonly used in driver / preamp applications. SQ dual triode. High perveance.
APPLICATIONS
Voltage amplifierPhase splitter
Generic triode driver / preamp stage
• Hi-Fi stereo• Headphone amp
VS 7119
HISTORY
Introduced1960ManufacturerPhilips·MullardEquivalents7119, CV5766
Late ProductionSPECIFICATIONS
Heater Voltage6.3V
Heater Current0.6A
Max Plate Voltage300V
Max Power4W
Sensitivity8.5 mA/V
Gain Factor24
Internal Impedance2.8kΩ
Pinout9-pin Noval
Era1960
RaritySought-after
Input Capacitance3.3pF
Miller Capacitance1.3pF
Output Capacitance1.5pF
SPICE model not yet available. Loadline calculator requires calibrated Koren parameters.
