E80L

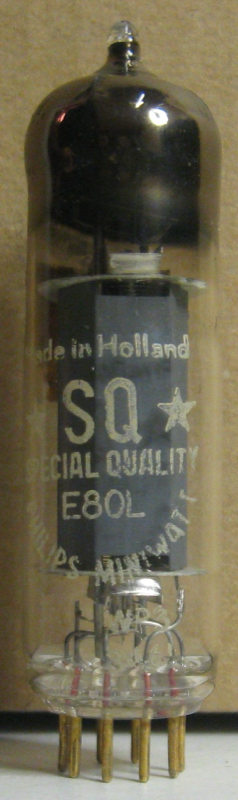

Pentode · IHT · 9-pin Noval · 1958

“Professional broadcast pentode. Robust.”

Small-signal pentode for low-noise voltage amplification

Datasheet ↗
TRANSCONDUCTANCE0mA/V
Cgk0pF
Cgp0pF
Cpk0pF
GAIN0%
POWER15%
DRIVE50%
LINEARITY75%
HEATER6.3V / 0.3A
MAX PLATE300V / 6W
BASEnoval
EXECUTIVE SUMMARY

The E80L is a indirectly-heated pentode from Philips·Siemens, introduced around 1958. Commonly used in power / driver applications. Professional broadcast pentode. Robust.

HISTORY
Introduced1958ManufacturerPhilips·SiemensEquivalents6227
Golden Age
SPECIFICATIONS
Heater Voltage6.3V
Heater Current0.3A
Max Plate Voltage300V
Max Power6W
Sensitivity14.5 mA/V
Gain Factor—
Internal Impedance—
Pinout9-pin Noval
Era1958
RaritySought-after
Input Capacitance10pF
Miller Capacitance0.05pF
Output Capacitance5.5pF
PDF

E80L Datasheet

Frank's Electron Tube Pages · PDF

↗

SPICE model not yet available. Loadline calculator requires calibrated Koren parameters.
